All endpoints need a valid access token which can be obtained following either of the authentication flows detailed below. Both the authentication methods required a OAuth2 client. Create a OAuth2 client for your organisation at https://app.hoxton.ai/settings?tab=oauth_client, if not done already.

This method is preferred if you plan to share your oauth client credentials with a third part app. This method involves directing user to the login page on the authorization server. After the user has successfully authenticated, exchange authorization code received from the server to the access_token. This is a multistep method.

1. Get authorization_code:

Endpoint: https://auth.hoxton.ai/authorize

Parameters

Parameter	Type	Description
response_type	required	Always set this to code
audience	required	Always set this to https://api.hoxton.cloud
scope	optional	A space separated list of claims to include in the token. Use profile to get ID token. Include offline_access to get Refresh Token.
client_id	required	The oauth client's id
redirect_uri	required	URL the user should be redirect to after successful login. This must be a valid Allowed Callback URL set in the oauth client

An example authorization url would be:

https://auth.hoxton.ai/authorize?
    response_type=code&
    client_id=<CLIENT_ID>&
    redirect_uri=<REDIRECT_URI>&
    scope=offline_access&
    audience=https://api.hoxton.cloud

On successful authentication, you will receive a HTTP 302 response with the authorization_code included as a parameter.

HTTP/1.1 302 Found
Location: <REDIRECT_URI>?code={authorization_code}

2. Exchange authorization_code to access_token:

Endpoint: https://auth.hoxton.ai/oauth/token

Parameters

Parameter	Type	Description
grant_type	required	Always set this to authorization_code
code	required	The authorization_code from the previous step
client_id	required	The oauth client's id
client_secret	required	The oauth client's secret
redirect_uri	required	A valid URL configured in the oauth client. This must match exactly the URL passed to the authorization endpoint in the first step

You can now exchange the authorization_code from the above step to the access_token by making a POST request to the token URL.

curl -X POST https://auth.hoxton.ai/oauth/token
  -H 'Content-Type: application/json'
  -d '{
    "grant_type": "authorization_code",
    "code": "<code_from_authorization_step>",
    "client_id": "<CLIENT_ID>",
    "client_secret": "<CLIENT_SECRET>",
    "redirect_uri": "<REDIRECT_URI>"
  }'

All going well, you will get a HTTP 200 response with the access_token which is valid for 24hr.

{
  "access_token": "eyJhbGc...2oSuHNwA",
  "refresh_token": "v1.MT...4XFunfTks",
  "id_token": "eyv1.KDNM3w...vPkdKvMU",
  "token_type": "Bearer",
  "expires_in": 86400
}

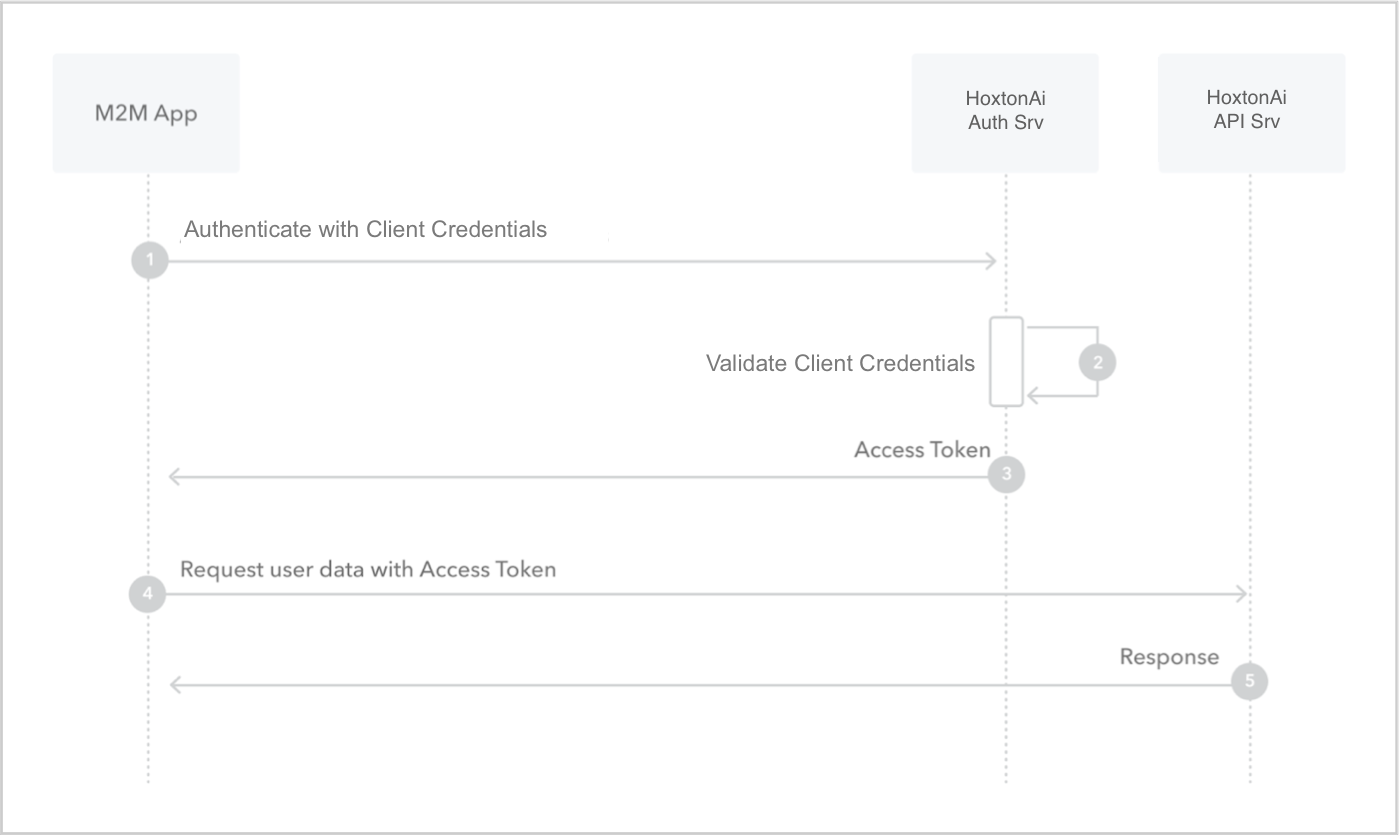

This method should be reserved for internal use only. If you are sharing with third party, use authorization code flow described above. This flow is best suited for Machine-to-Machine (M2M) applications, such as CLIs, daemons, or backend services, because the system must authenticate and authorize the application instead of a user.

To get the access token, make a POST request to the token URL with the oauth2 client's credentials (client_id & client_secret). This is a single step method.

1. Get access_token:

Endpoint: https://auth.hoxton.ai/oauth/token

Parameters

Parameter	Type	Description
grant_type	required	Always set this to client_credentials
audience	required	Always set this to https://api.hoxton.cloud
client_id	required	The oauth client's id
client_secret	required	The oauth client's secret

Once you have the required oauth client credentials, the access token can be obtained from the authorization server by making a POST request to the token URL.

curl -X POST https://auth.hoxton.ai/oauth/token
  -H 'Content-Type: application/json'
  -d '{
    "grant_type": "client_credentials",
    "audience": "https://api.hoxton.cloud",
    "client_id": "<CLIENT_ID>",
    "client_secret": "<CLIENT_SECRET>",
  }'

If the authorization server was able to successfully validate the request, you will receive HTTP 200 response with a payload containing access_token which is valid for 24hr.

{
  "access_token": "eyJhbGc...2oSuHNwA",
  "token_type": "Bearer",
  "expires_in": 86400
}

This method should be reserved for internal use only. If you are sharing with third party, use authorization code flow described above.

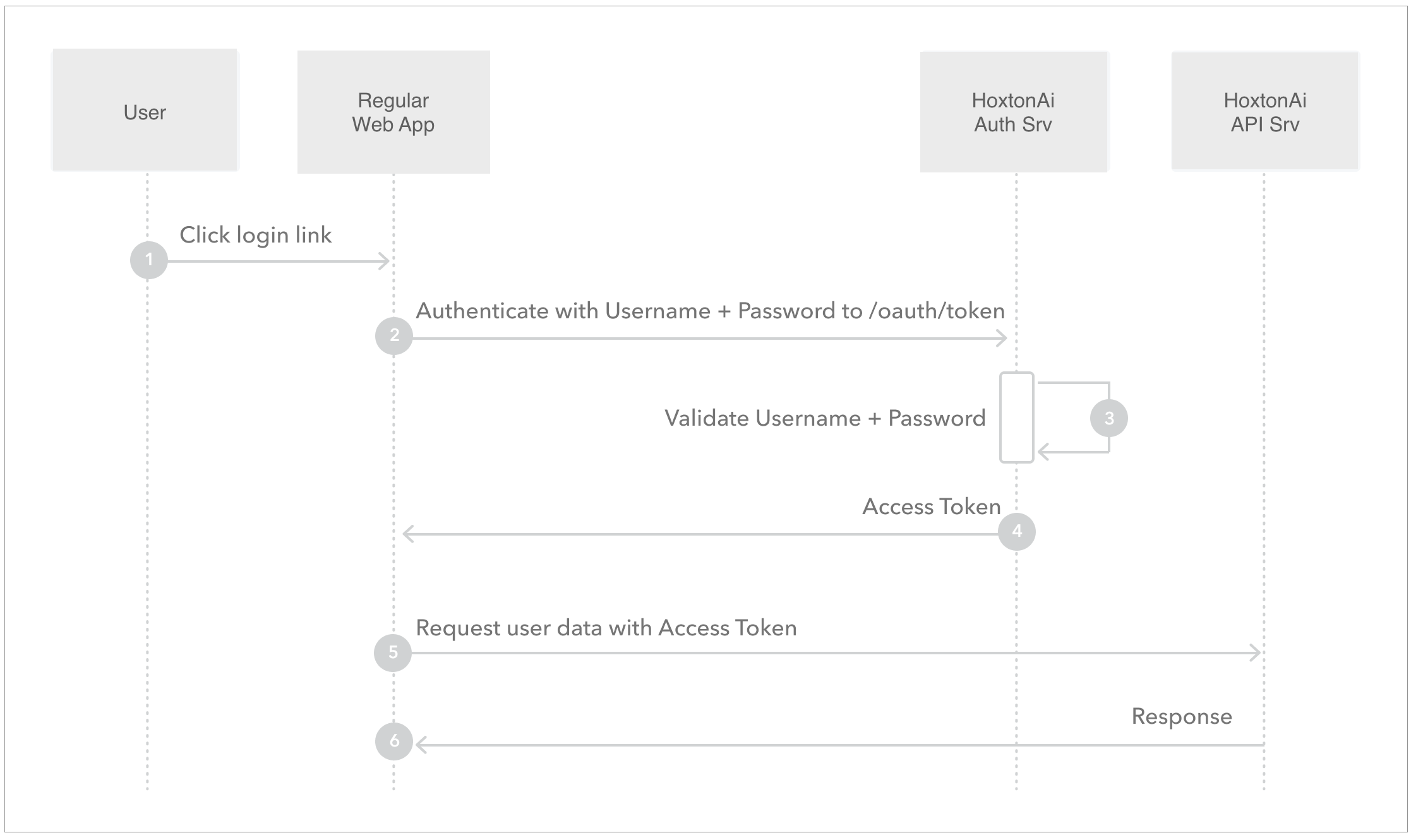

To get the access token first get the user's credentials (username & password). Then get the oauth2 client's credentials (client_id & client_secret). Finally, exchange them for token by making a POST request to the token URL. This is a single step method.

1. Get access_token:

Endpoint: https://auth.hoxton.ai/oauth/token

Parameters

Parameter	Type	Description
grant_type	required	Always set this to password
audience	required	Always set this to https://api.hoxton.cloud
scope	optional	A space separated list of claims to include in the token. Use profile to get ID token. Include offline_access to get Refresh Token.
username	required	The user's loging username
password	required	The user's login password
client_id	required	The oauth client's id
client_secret	required	The oauth client's secret

Once you have the required oauth client credentials, the access token can be obtained from the authorization server by making a POST request to the token URL.

curl -X POST https://auth.hoxton.ai/oauth/token
  -H 'Content-Type: application/json'
  -d '{
    "grant_type": "password",
    "username": "<USERNAME>",
    "password": "<PASSWORD>",
    "audience": "https://api.hoxton.cloud",
    "scope": "offline",
    "client_id": "<CLIENT_ID>",
    "client_secret": "<CLIENT_SECRET>",
  }'

If the authorization server was able to successfully validate the request, you will receive HTTP 200 response with a payload containing access_token which is valid for 24hr.

{
  "access_token": "eyJhbGc...2oSuHNwA",
  "refresh_token": "v1.MT...4XFunfTks",
  "id_token": "eyv1.KDNM3w...vPkdKvMU",
  "token_type": "Bearer",
  "expires_in": 86400
}

If you have requested offline_access claim in the authorisation call as described above, you can request a new access_token using this method.

1. Get new access_token and refresh_token:

Endpoint: https://auth.hoxton.ai/oauth/token

Parameters

Parameter	Type	Description
grant_type	required	Always set this to refresh_token
scope	optional	A space separated list of claims to include in the token. Do not set this parameter if you want to keep the original claims
client_id	required	The oauth client's id use in the initial authorization call
refresh_token	required	The refresh_token from the previous successful authorization call

To get a new access_token & refresh_token, make a POST request to the token URL.

curl -X POST https://auth.hoxton.ai/oauth/token
  -H 'Content-Type: application/json'
  -d '{
    "grant_type": "refresh_token",
    "client_id": "<CLIENT_ID>",
    "scope": "offline",
    "refresh_token": "v1.MT...4XFunfTks"
  }'

If the authorization server was able to successfully validate the request, you will receive HTTP 200 response with a payload containing access_token (which is valid for 24hr) and a refresh_token.

{
  "access_token": "eyJhbGc...2oSuHNwA",
  "refresh_token": "v1.MT...4XFunfTks",
  "id_token": "eyv1.KDNM3w...vPkdKvMU",
  "token_type": "Bearer",
  "expires_in": 86400
}
